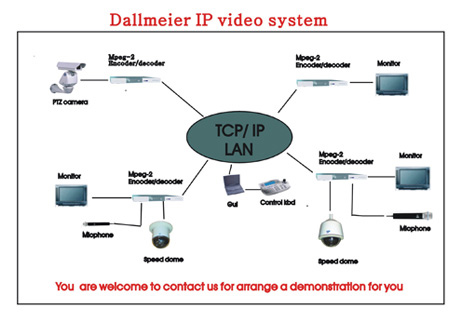

DALLMEIER DIGITAL VIRTUAL MATRIX SYSTEM DIAGRAM

Due to the well development of digital technology, video matrix system & video conference system have been gradually turn to digital, intelligent, networking, professional & integrated. Tung Po recently released Germany Dallmeier digital virtual matrix system has perfectly matched those criteria and requirements. Comparing with analog matrix system, the advantages of Dallmeier are as follows:

function Dallmeier virtual matrix Analog matrix
Video & audio synchronization Video & audio will still be synchronized no matter the system scale is large or small arge scale analog video matrix cannot combine with audio. Independent audio matrix has difficulties to be synchronized
Recording

It consists of video and audio recording not only at equipment site, but also at control room. Multi playback functions, including playback forward and backward, frame by frame forward and backward. Recording, playback and backup simultaneously.

Needs external recorder, not friendly playback
Expansion Basically no limitation on system input / output expansion, just simply plug and play for expansion. Limit on system input / output. Some even cannot expanded, or huge expansion charge and huge engineering work.
Transmission

Using network for transmission, wherever there is a network, there can build a system

Coaxial cable, optic cable, point to point transmission. Huge engineering work and charges

Multi-networking Different level networking, no limitation on the level. Software setup authority, low cost. Limit on network level, huge engineering work, high cost.

System emergency and data protection

Recordings and storage data can be spread out through the system, once there is an failure at one point, it will never influence other points.

Single point storage, cannot record if there is any failure.
System control browser Broadcasting style, no limitation on location and number of login to thre system for viewing. Multi-tasking Has limitation on login for viewing, only viewing at control centre.
Compatibility and integration Extremely strong Limitation
System clock synchronize At any circumstances, it keeps time synchronize through network, easy to be execute Difficult to keep time clock synchronize in the system, should be very professional to be executed.


From the above points, we should be able to see the advantages of Dallmeier in virtual matrix system compatibility & integration ability. Dallmeier does not have a limitation on its capacity in a single system. Only if there is a network, just connect the encoder / decoder to the network, then the system becomes flexible & open for future expansion. Doesn't like analog system with limitation, Dallmeier digital virtual matrix can solve many problems which comes from analog matrix system, such as huge and complicated system expansion and connectivity.

The composition of Dallmeier digital virtual matrix system consists of Dallmeier DIS-1S digital hard disk recorder. It adopted MPEG2 hardware compression algorithm for transmission and storage. Internal hard disk capacity can be up to 1T. DIS-1S is a real time 25 fps recording and transmission, real time playback with DVD quality at 4 CIF at normal speed forward and backward, frame by frame forward and backward etc…. DIS-1S connects to the virtual matrix system network through its RJ45 connector, it supports multi network protocol and through LAN router transmit data in order to perform monitor switching and control functions etc…. It controls camera through the data port. Each Dallmeier DIS-1S is not fixed to be defined that it is an encoder or a decoder; actually, user can freely define it is an encoder; a decoder; or both encoder and decoder. Each DIS-1S has video input and output, audio input and output. It can be used alone as a DVR, or it can be used in a digital virtual matrix system.

In the system, doesn't have any location limitation, video output and keyboard control can be at any point within the system. Dallmeier digital virtual matrix system has unicast or multicast transmission throughout the network; and therefore it does not have any limitation on location, connection number, and system integration.

DIS-1S can be located at camera site for recording, or it can be located at control centre site for central recording. Under this circumstance, it will never influence the recordings if there is a failure at any point within the system.

With alternation of DIS-1S video transmission bandwidth, user can freely control the system network resources and video picture quality based on the real network situation.

Through networking, DIS-1S can connect to many different system to form a group connection. Doesn't like the complication of analog matrix system, by using software, Dallmeier digital virtual matrix system can be defined to have different level for switching control.

Dallmeier digital virtual matrix system has very strong system competitiveness and high integration. It can integrate with access control system, fire control system, alarm system, patrol system, to have a huge and full security surveillance system.

By using powerful PView software to control and setup the whole digital virtual matrix system, user can perform video live viewing, data management, system set up, monitor switching, playback and backup.

On the other hand, DIS-1S can be define as a video and audio encoder, or as decoder, or as both encoder and decoder, the video and audio are synchronized. Very small latency through the network transmission, and therefore it can be used as video conferencing.

Dallmeier has many applications world wide, and the biggest application is in Macau Sands casino. It has 1200 input 60 output surveillance system.

Due to Dallmeier digital virtual matrix system has it advantages and infinitive expansion, many large scale projects such as entertainment, highways, airports, railways, factories, banks, hotels, hospitals, supermarket and jails' surveillance systems are adopted such proposal. Dallmeier digital virtual matrix system has been fully pushed those projects' system efficiency and quality to a high standard

Tung Po has Dallmeier's equipment at our Shenzhen office, and it is ready to provide a full demonstration for any enquiries. You are welcome to contact us for further assistance or arrange a demonstration for you.
