What is Security Access Control System? Why is it so important?
In the current advance technology world, Security Access Control plays an important rule not just to protect your asset, it enhance it integrity to seamlessly integrate with various sub-system (eg, Digital Video Recorder, E-payment, asset tracking, human tracking, smart home automation etc) to provide us a comfort, save, efficient working environment.

What is the state of art in Access Control System?
In few years back, barcode & magnetic stripe card system were so popular in theregion. Currently the contactlesstechnology already leading the world in varioushigh security equipment system eg, contactless smart card inbuilt in Biometric reader, Cashless e-payment transaction, Ticketless traveling, Smart Access transportation.


What we can provide?
Asis Technologies (an ISO9001 certified firm) is an industry leading designer and manufacturer of Electronics Access Control, Building Facilities Management & Contactless Smart Card Systems. We provides integrated solution in Contactless Smart Card Access Control, Intrusion, Facility monitoring & control, Lift Access, Car Park, CCTV, Public Address, Stored-Value Smart Cards,ticketless traveling solution & digital video images into a single seamless enterprise solution.

1) Full Range of Smart Reader Technology
Complete product family of Proximity/ Smart Card/ Biometric Reader with various
communication interface, read different Card Technologies:
a) 125 KHZ Proximity Card Reader
- up to 12 cm read range
- Keypad, Keypad & LCD model available
- RS232, RS485, Weigand, TTL
b) ISO 14443 mifare Type A and B Contactless Smart Card Reader
- up to 10 cm read range
- secret key management protocol
- Keypad, Keypad & LCD model available
- RS232, RS485, Weigand
c) Sony or Felica Contactless Smart Card Reader
- fast response up to 10 cm read range
- support up to 64 bits reading
- Keypad, Keypad & LCD model available
- RS232, RS485, Weigand, TTL

d) e-Purse Terminal Smart Card Reader
- Support ISO 14443 A, read/write operation
- Smart Value Top up/deduction
- Secure Secret key authentication
- Keypad & LCD model available
- RS232, RS485, TCP/IP

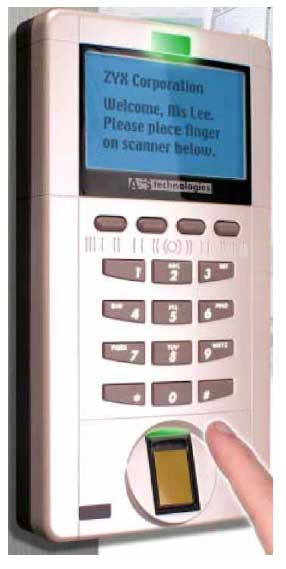

e) Finger Print Biometric Reader
- Support ISO 14443 A/B, ISO 15693, HID Compatible Standard
- Standalone or network connectivity
- High capacity user of 6000 & 50000 event buffer
- built in irDA communication port
- fingerprint template in reader or smart card
- Keypad, Keypad & LCD model available
- RS232, RS485, Weigand, TCP/IP

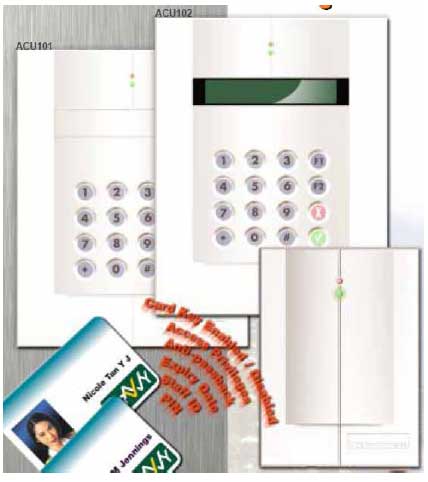

2) ACU100 family Reader/Controller
The ACU100 make Mifare? works Smarter in Access Control. It operates Standalone or Network (to 256 Controller), Multi/Remote site support. Feature with unlimited Cards with access Level Control, 500 Local Card ID storage, 1000
Events Buffer, full Door monitoring functions with Alarm/Fire Monitoring.

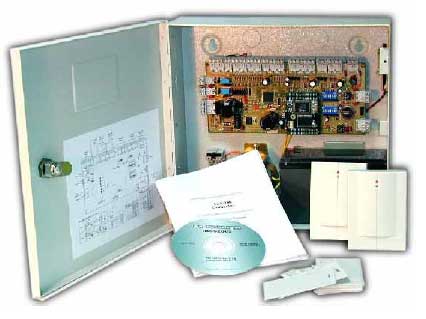

3) ACU200 Access Control Family
ACU200 is an integrated access control and intrusion detection package. It can support 2,000 card holders, 64 weekly schedules, 256 access groups and 1,000 event buffers. Featuring in-built power supply with battery back-up and automatic
switch over, it offers complete two-door support with eight alarm inputs and six control outputs.

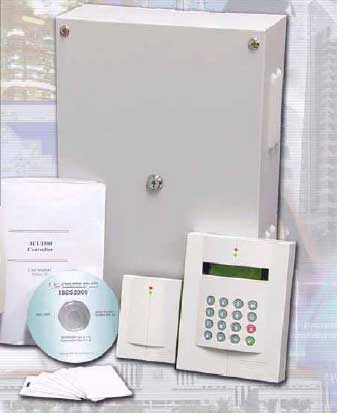

4) ACU1000 Enterprise Access Control System
ACU1000 can support 20,000 cardholders and 10,000 events. This is expandable to 100,000 cardholders and 200,000 events. It features modular four or eight access control readers and up to 300 input and output points per panel.
This can be increased to 2,048, access control readers and 50,000 input and output points per system. Using a 10BaseT communication interface with TCP/IP protocol, the system offers the option of dial-up modem and wireless communication interface.

Integrated Enterprise Software Solution:

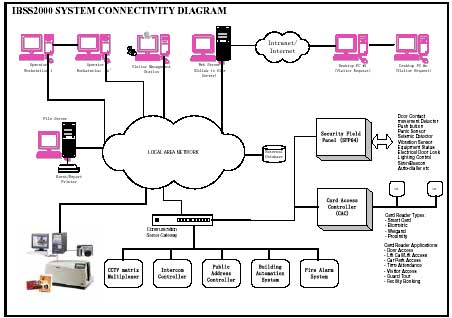

1) IBSS2000 Integrated Building Security Manager
IBSS2000 has a wide array of system integration options, including intrusion detection, access control, CCTV matrix integration, intercom system, building automation and fire alarm. It has unlimited access levels with password protection to restrict user access to the system. The database can be partitioned to restrict each command to a security area, while the audit trial feature tracks the activities of each user.
IBSS2000 features a unique photo verification to verify the cardholder information upon valid access and it trace the cardholder history within a single click.
An integrated IBSS SMS Server uses GSM GPRS module can be use to alert the user of any intrusion & break in attempt. Short Message Service (SMS) can be generated to alert the uses with details description of any alarm event occurred.

Digital motion video capturing capability is available to provides the integrated solution with the digital video recorder system with pre-recorded/post-recorded images upon any alarm trigger.
The system is powered by Microsoft Windows NT/2000, true client-server architecture and is configurable from standalone to comprehensive LAN and WAN topologies.

2) IBSS Web Client
The key features of IBSS Web clients facilitate remote access, monitor and Control to various sites via a standard web-based Browser. All details can be easily download from the Security Web Server uses any workstation with authorized login in any part of the world within your finger tips..
Full alarms and events list could view over the web. Multi-color events list display for easy identification. A full Device status list will be display, which authorized personnel could on-line control the device over the Internet/Intranet.

3) Visitor Management System (VMS)
VMS is a very powerful, yet simple to operate visitor management system. Its' powerful features manage and track all visitors and the employees they are visiting at your premises or site. The whole check-in procedure can be simplified as the Barcode scanner will scan the ID cards. The number is logged into the records. Operator simply key in all visitors' information into the records field.Photograph of the visitor will be captured by the web Camera and stored on the record, the photo and the name of visitor, Host Name, Date/time of visit and duration time allowed is printed onto their visitor badge for easily verification.
Web Based Visitor Request Module provide a flexibility services for pre-register facility via the internet. Their Visitor's information, visits date and time can be electronically filled on their Desktops PCs via Internet Browser.
The VMS can be integrated with ASIS IBSS Access Control system to work as a seamless solution. The visitor can be assigned with Access Card with the same Access Authority with the Host, but with a limited time frame (All access authority and the schedule can always be programmable) so that the visitor could visit the host with/without escort.
The VMS can be integrated with the GSM GPRS module to provides any visitor alert services to the host.
4) Card Imaging Management System (CIMS)
Card Issuing and Management System is an application that allows for creating Access Cards for cardholders. This application is able to capture the cardholer image from any video-input source (e.g. digital camera, CCTV camera, video camera, etc) and image file. This image is then stored into the Security Management System’s (SMS) database. The user could size the image captured accordingly. This is a user-friendly application with the necessary functions like preview, print, add, edit, delete, etc. Additional features include creation of various templates for the card design, flexibility in creating user-defined fields.
The CIMS is fully integrated with the Integrated Building Security System (IBSS) to provides the flexibility of cardholder management tools and cardholder broadcast to field controller capability.
